SLOPE TOOL CARRIERS
Grip4-140
The versatile all-rounder for municipal applications and mountain agriculture
Engine
Kohler KDI 3404TCR-SCR 4-cylinder turbo engine
Torque
640 Nm at 1,400 rpm
Transmission
Power-split transmission with
3 powershift stages
Unladen weight
4,200 kg
The SAUERBURGER Grip4-140 impresses with its compact design, high manoeuvrability and strong performance. Thanks to its low centre of gravity and robust construction, the implement carrier is ideal for work on demanding terrain, in confined spaces and on slopes.
The clear-view cab, high driving comfort and versatile attachment options make the Grip4-140 a reliable partner for municipal maintenance, winter service, green-space maintenance and many other applications.
Standard equipment
Engine
- Kohler KDI 3404TCR-SCR 4-cylinder turbo engine
- 105 kW / 142 hp at 2,200 rpm
- Max. torque 640 Nm at 1,400 rpm
- Common Rail
- electronic direct injection with 3.4 l displacement
- Stage V emissions standard, water-cooled and intercooled
- Electronic engine management
Rear power lift
- Three-point quick-coupling hooks for Cat. II
- Spindle-adjustable lift arms
- Max. lifting capacity 3,500 kg at 195 bar
Axles
- All-wheel drive as standard
- Heavy-duty steering drive axle with planetary final drives
- Oil-immersed disc brakes
- Electrohydraulically operated 100% differential lock
- acting on the front and rear axles
- Hydraulically operated 100% differential lock acting on the front and rear axles
Front linkage
- Axle-guided three-point front lift
- Hydraulic side shift by 400 mm
- Self-regulating relief control with oscillation damping for road travel
- Quick-coupling hooks Cat. II / mechanical top link
- External electric controls
- Max. lifting capacity 2,500 daN at 195 bar
Transmission / travel drive
- Power-split transmission with three powershift stages and a separate oil circuit
- Hydraulic dual-circuit four-wheel power-assisted braking system
- Speed: off-road 0–20 km/h · on-road 0–40 km/h
Rear power lift
- Three-point quick-coupling hooks for Cat. II
- > Front: 1 double-acting control valve with float position, switchable to single-acting
- > Rear: 1 double-acting control valve with float position, switchable to single-acting
- The flow rate of all control valves is adjustable
- Variable-displacement axial piston pump, max. flow rate 68 l/min at 195 bar
Working hydraulics
- Hydraulic system consisting of
- > Front: 1 double-acting control valve with float position, switchable to single-acting
- > Rear: 1 double-acting control valve with float position, switchable to single-acting
- The flow rate of all control valves is adjustable
- Variable-displacement axial piston pump, max. flow rate 68 l/min at 195 bar
PTO shafts
- Independently electrohydraulically controlled front and rear PTO shafts
- with automatic start-up control
- Front PTO:
- 1000 rpm
- Direction of rotation in the direction of travel: clockwise
- With an oil-cooled multi-disc clutch
- Rear PTO:
- 540 and 1,000 rpm
- Direction of rotation in the direction of travel: clockwise
Axis drive
- 4 steering modes:

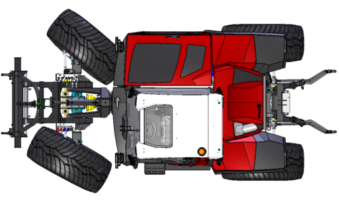

- > Front-wheel steering

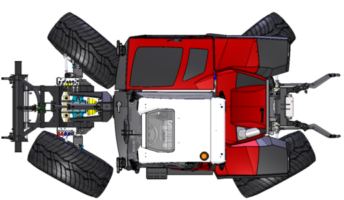

- > All-wheel steering

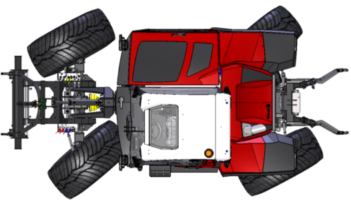

- > Crab steering

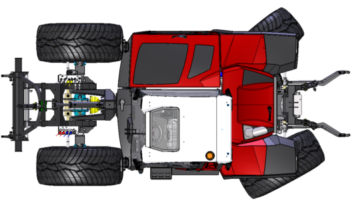

- > Drift steering
- Drift steering: adjustment of the rear axle via joystick,
- with automatic return to the initial position
- Free selection of steering modes with automatic steering-angle detection
- Wheel position synchronisation via inductive sensors and absolute encoders
Electrical system
- 12 V, 110 Ah · battery with disconnect switch
- LED lighting compliant with StVZO regulations
- Front work lights:
- > 2 LED work lights
- Rear work lights:
- > 2 LED work lights
- 7-pin socket at the rear
- 3-pin socket at the front and rear
Applications
Berg- und Landtechnik

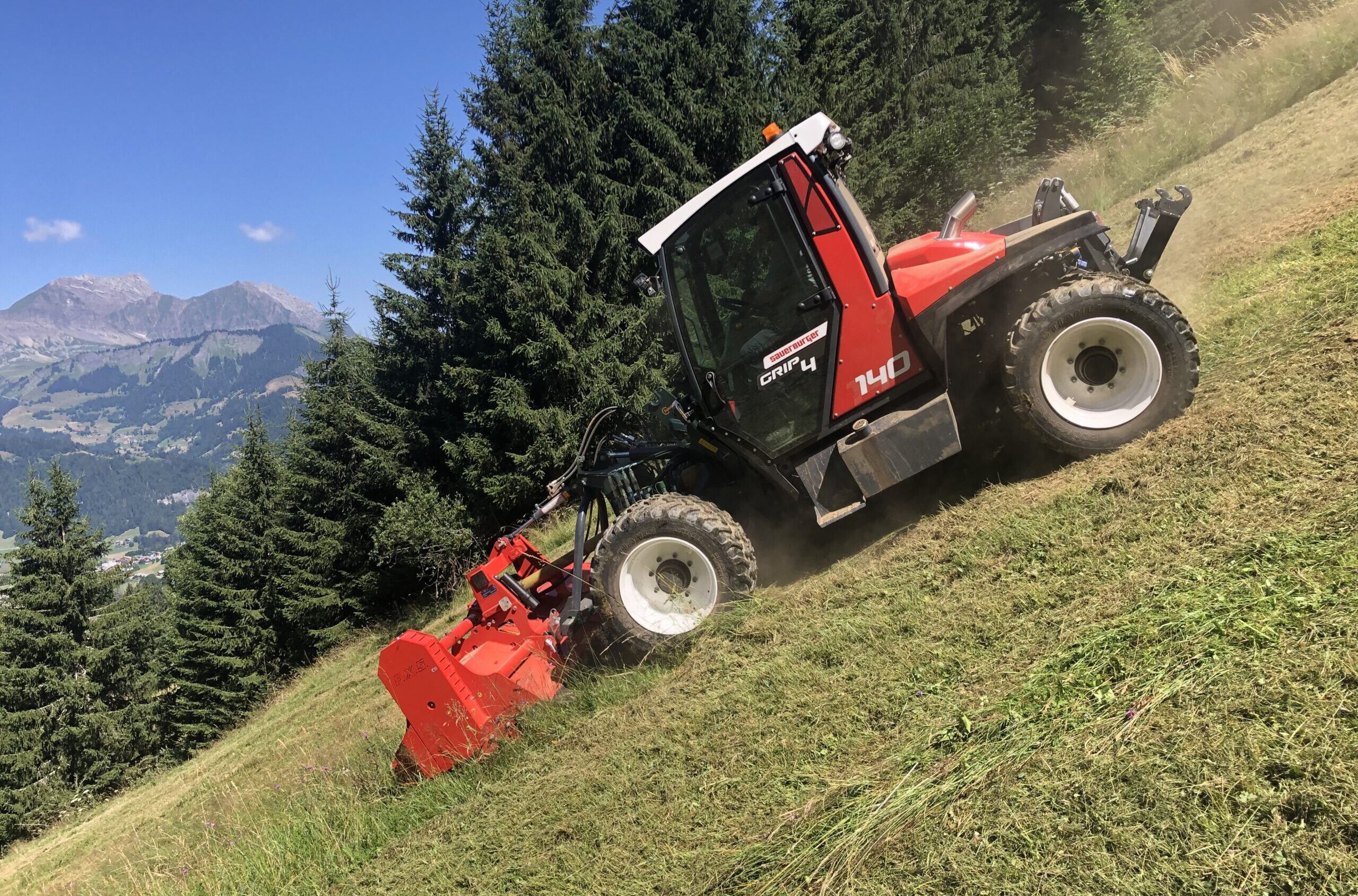

Mäharbeiten und Futterernte
Kommunaltechnik
Pflege von Grünflächen, Arealen, Böschungen und Sportanlagen
Winterdienst
Schneepflug, Schneefräsen und Streuen
Frontlader
Viele Einsatzmöglichkeiten
Cab equipment
Cab and visibility
- Dust-tight all-round visibility comfort cab with roof window
- Safety frame (tested in accordance with 79/622/EEC)
- Vibration- and noise-insulated
- Opening side door with pivoting window
- Curved and opening rear window
- Tinted windows
- Windscreen and rear-window washer system
- Sun blind on the windscreen
Controls and comfort
- Height- and tilt-adjustable steering column
- Air-suspended comfort seat with adjustable damping
- > active lumbar support
- > extendable backrest extension
- > active seat ventilation
- > Seat with swivel adapter
- > Heated seat

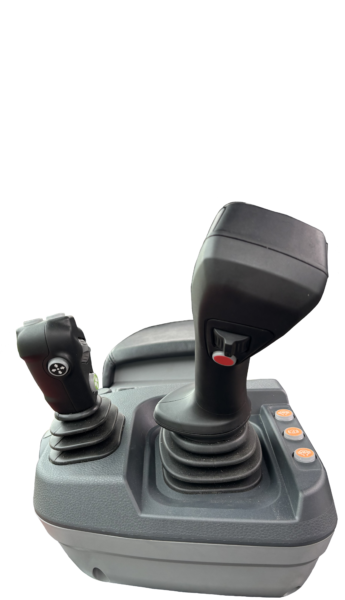

- Multifunction armrest with integrated mobile phone charging compartment
- USB power connection in the armrest
- Cup holder
- Storage compartment for an A4 folder
- Heating with blower
- Automatic climate control
- Coat hook
- 12-inch colour touchscreen display
- > angle-adjustable
- > Display of hydraulic oil level, battery voltage and service status
- Cruise control with 2 speed memories
- Electrically adjustable and heated exterior mirrors with
- integrated wide-angle mirror
- Automatic and manual fan reversal
Weight specifications
Only 2,400 kg unladen weight.
- Permissible front axle load: 5,000 kg
- Permissible rear axle load: 5,000 kg
- Gross vehicle weight: 8,200 kg
- Max. unbraked trailer load: 2,500 kg
- Trailer load with air brakes: 20,000 kg
Your benefits
- High stability on slopes
- Low soil compaction
- Maximum traction
- Safe implement operation at the front and rear
Power
1
HP
Cylinders
1
Displacement
1
l
Maximum speed
1
km/h
Dimensions
Tyres | A | B | C |
|---|---|---|---|
500 / 45 R22.5 Grass King | 2.412 mm | 364 mm | 2.290 mm |
420 / 65 R20 AC 65 | 2.414 mm | 366 mm | 2.210 mm |
500 / 55 R20 Lawn Master 221 | 2.401 mm | 353 mm | 2.290 mm |
550 / 60 R22.5 Flotation TR-675 | 2.493 mm | 445 mm | 2.440 mm |
355 / 50 R22.5 Scand. M+S | 2.386 mm | 338 mm | 2.145 mm |
Matching twin wheel | D |
|---|---|
Twin wheels 210 / 90 R24 AS profile | 2.810 mm |
Twin wheels 250 / 85 R24 AS profile | 2.810 mm |
Twin wheels 8.3 – 24 AS profile | 2.810 mm |
