Flex-wing rotary cutter

Condor

For the optimal maintenance of fallow land, pastures, airports or military installations

Ideal for mulching maize, straw and green manure

Heavy-duty gearboxes and driveline shafts with overload protection

High intake

Versatile

Robust design

CONDOR - The large area mulcher

On the SAUERBURGER large area roundabout mower CONDOR, the working height of the machine is adjusted via 3 double-acting hydraulic cylinders. The coupling of the towing device with the support wheels enables a parallel working height adjustment.

In transport position, the side panels swing up 100° and thus the centre of gravity is shifted to the middle of the machine, which provides much more stability when driving on the road. The changeover from transport to working position is hydraulic and can be carried out within a few seconds.

Advantages at a glance:

Strongly dimensioned gearboxes and drive shafts with overload protection
clean cut
optimal comminution
easy setting
smooth surfaces
leicht zu reinigen
High inlet opening
Perfect mulching result even at high working speeds
Very good distribution of the mulch mass over the entire width of the machin

Technical solutions

Tandembereifung (optional)

zur Reduzierung des Bodendrucks

Parallelführung

des Mulchers bei Arbeitshöheneinstellung

Deichselvarianten

Transportstellung

Stabilität durch großen Schwenkwinkel

hydraulische Transportsicherung

des Mulchers bei Arbeitshöheneinstellung

	CONDOR 5000/3	CONDOR 6200/3	CONDOR 7300/5

Working width	5,00 m	6,20 m	7,30 m
Transport width	2,95 m	2,95 m	2,95 m
Number of wheels	4	6	8
Splitter gearbox rating	290 hp	290 hp	290 hp
Spindle gearbox rating	180 hp	180 hp	180 hp
PTO speed	1.000 rpm	1.000 rpm	1.000 rpm
Weight	2.810 kg	3.300 kg	3.500 kg

Tools for Condor

The choice of working tools depends on the respective operating conditions. These vary in practice.
The following tools are available for this machine:

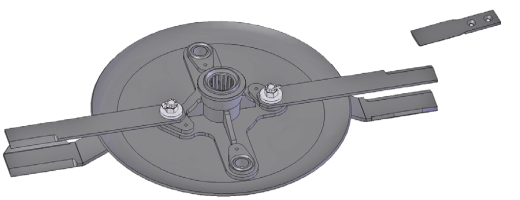

Shredder/mulching kit with 4 blades and 1 counter-knife

Angled bladkniveses at the bottom, two straight knives at the top and a fi xed counter-knife between them on each rotor.
Suitable for optimum shredding of plant residues and very large quantities of dry material.
Requires a higher power than the standard version.

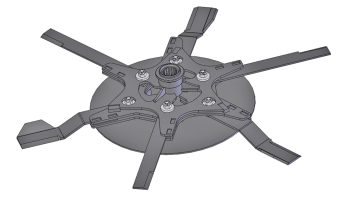

Rotor complete with 6 knives

three angled knives mounted on the bottom and three straight knives on the top.
Suitable for very fine chopping.
Requires a higher power consumption.

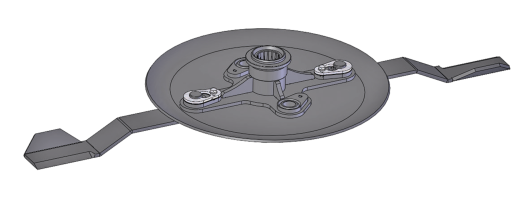

Standard equipment - Rotor complete with 2 knives

Two angled knives on a knife carrier.
Suitablefor all types of cutting and chopping work.

Standard equipment

2-blade rotary system

Smooth deck to prevent debris build-up

Heavy-duty welded construction

Height under roof up to 33 cm for large volume mulching

Robust gearbox combination

Freewheel on input wide-angle PTO shaft

Secondary driveline shafts with overload protection

4 large support wheels (size 10.0/75-15.3), hydraulically folding via one double-acting hydraulic valve

Hydraulic transport lock

Choice of tongue configuration: above or below PTO shaft

Vibration damping for road travel by nitrogen bladder

Complete wheel 10.0/75-15.3 10 PR, Starco AW profile

Road lights

Special features

Tandem wheels with 6 or 8 tyres

Walking tandems

Blade system with 6 blades on each rotor

Shredding kit (system with 4 blades and 1 fixed counter-knife on each rotor)

Complete wheel 10.0/75-15.3 18 PR, MP 567 profile

Protection against thrown objects

Push bar

Road approval for transport
