Bedding device

Bedding device

Easy bedding – controlled, time-saving and dust-reduced

Suitable for bedding materials such as sawdust and wood shavings, separated slurry, compost or chopped straw with residual stalk lengths of 10 to 15 cm, as well as other bedding materials.

SAUERBURGER Bedding Device EG

With the SAUERBURGER EG bedding device, you can create a comfortable and stable bedding layer for your animals from chopped straw, sawdust or other suitable loose materials without manual effort – simply while driving past.

Robust construction

The SAUERBURGER EG bedding device features a robust sheet-steel construction with two torsion-resistant mounting beams at the rear. The front or loading side consists of a Hardox scraper edge and two support profiles, providing exceptional rigidity to the front section. The side walls widen towards the outside. Two reinforcing ribs on each side further increase the strength and durability of the entire construction.

Thanks to its numerous adjustment options, the machine is one of the most versatile in its field of application:

  • The speed of the conveyor belt – two basic speeds through different sprockets is standard equipment
  • Number of tines (in pairs, individually or without tines)
  • The width of the ejection chute can be adjusted via the sliding plates with slotted hole.

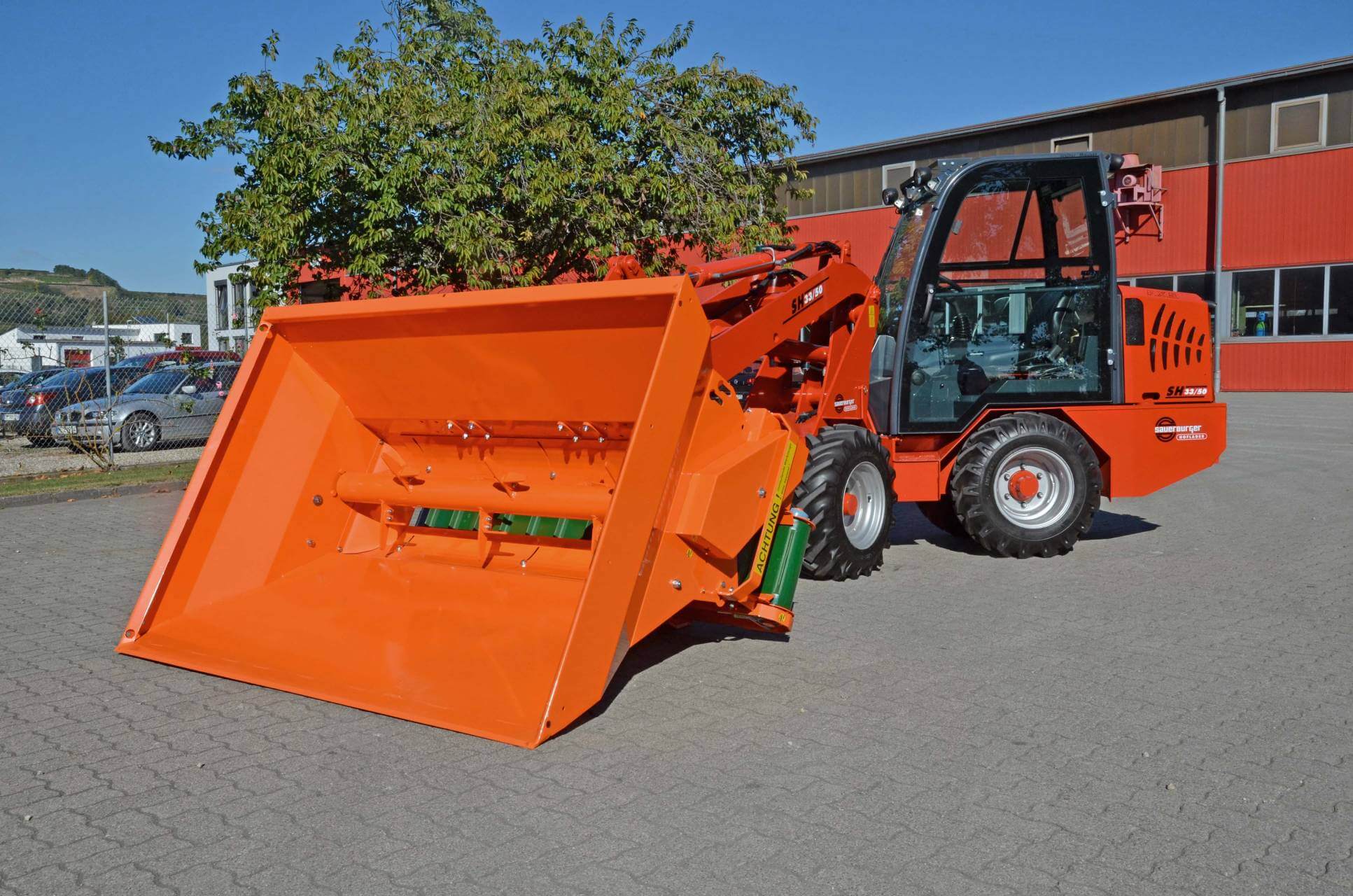

sauerburger-eg-einstreugerät-frontlader-tierhaltung
Conveyor belt with two speeds
sauerburger-eg-einstreugerät-frontlader-tierhaltung
technical view
EG 1600
EG 1900
EG 2200
Capacity
1,20 m3
1,50 m3
1,80 m3
High
1,36 m
1,36 m
1,36 m
Length
1,53 m
1,53 m
1,53 m
Outer width
1,61 m
1,91 m
2,21 m
Internal width at bottom
1,35 m
1,65 m
1,95 m
Conveyor belt width
30,5 cm
30,5 cm
30,5 cm
Weight
470 kg
550 kg
610 kg

Standard equipment

Large agitator tube with angled and short straight tines
Adjustable hopper plates
Adjustable conveyor belt speed: two basic speeds using different sprockets (standard: 3.0 m/s at 20 l/min)
The front or loading side consists of a Hardox scraper edge and two support profiles, providing exceptional rigidity to the front section.
Without mounting system

Special features

Version 1 = Large-diameter agitator shaft with 1 angled tine + 1 short straight tine. Our recommendation: lime-straw-water mixtures / partially chopped square bales with residual stalk lengths of 7 cm / heavy sticky compost / heavy sand
Version 2 = Large-diameter agitator shaft with 1 short straight tine
Low conveyor belt speed (3.0 m/s at 20 l/min)
High conveyor belt speed (5.0 m/s at 20 l/min)
Bolted mounting system
Bolted 30 cm hopper extension
Machine without hopper plate, but with long metering plates and a full-width slotted hole
